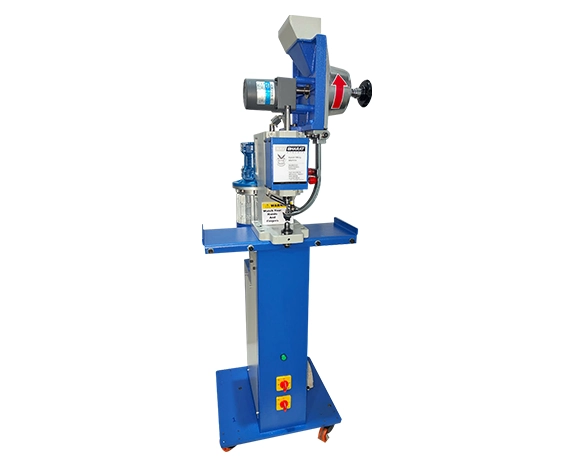

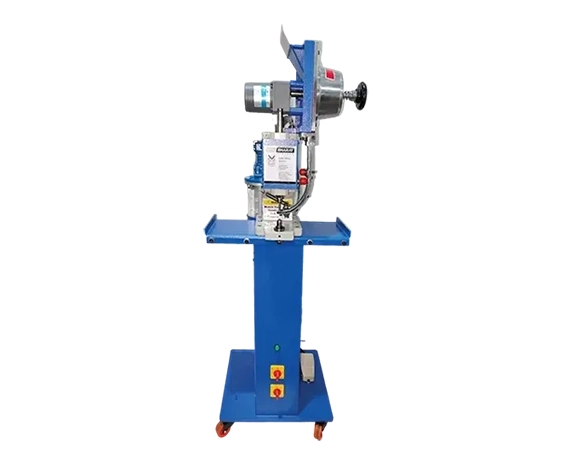

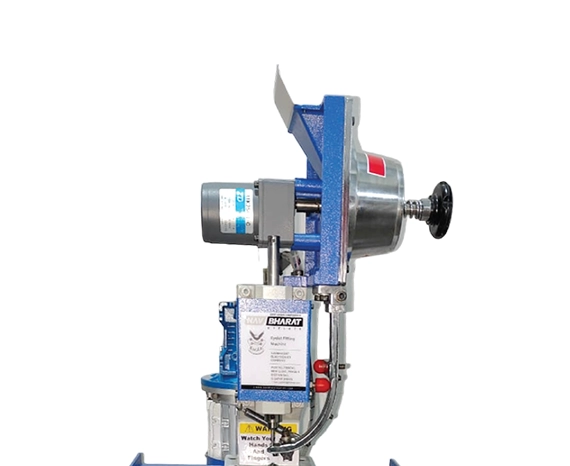

Single Channel Eyeleting Machine
This Automatic Eyelet Fastening Machine is suitable for Setting Eyelets on Shoes, Belts, Bags, Plastic, Paper and Similar Fabrics.
New Electric Design ensures completely Silent Operation.
Electric Foot Switch Operated (with no foot stress) leaves Operator both hands free to hold the media.
It can be moved within the Working Space as it Features a Table With Wheels.
It offers Optional Accessories, such as an Extension Table Plate that Facilitates the Handling of the Media.
Technical Specification
| Stroke Per Minutes | 192 (11,500 Eyelets per hour) |
| Hopper Capacity | One Time Can Put 600 or 700 Eyelets (Head 5mm/Length 4mm) |
| Throat Depth | 105 mm |
| Working Position Height | 750mm |
| Eyelet Head Diameter | 5mm - 18mm |
| Eyelet Tube Diameter | 3mm - 10mm |
| Eyelet Length | 4mm - 8mm |
| Phase | Single Phase |
| Main Motor Power | 1/2 HP |
| Hopper Gear Motor Power | 25 watt (Single Phase) |
| Machine Size (LxWxH) | 425 x 325 x 1250mm |
| Net Weigh | 80 Kg |
| Machine Package size (LxWxH) | 620 x 560 x 1600 mm |
| Gross Weight (in package) | 130 Kg |
