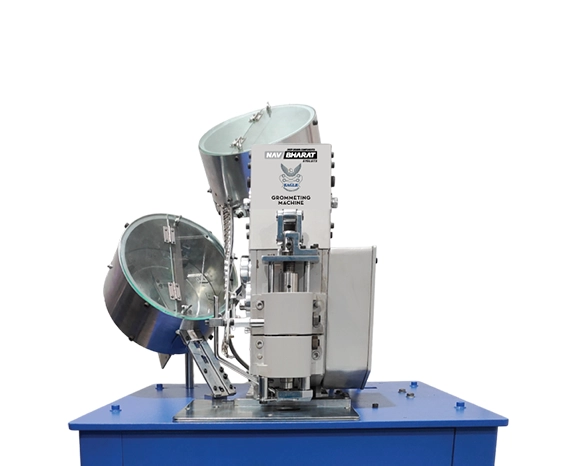

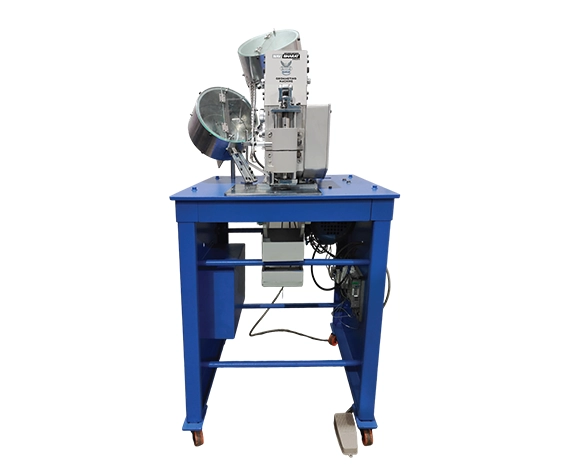

Dual Feed Tarpaulin Eyeleting Machine
Highly Efficient Dual Feed Automatic Eyeleting machine for Tarpaulin and Banner.Our Fully Automatic Tarpaulin Eyelet Fixing Machine is Suitable for Rolled edge Standard Eyelet and Washer.
New Electric Design ensures completely Silent Operation.
In a Single trip by Electric Foot or Hand Switch Press,Machine Punches a hole in Materials,Feeds and sets both Eyelet and Washer automatically.
Fast and accurate Positiong,Punching and Pressing than Manual machine.
Silent and soft Feeding Work with safe,easy and reliable operation,Maintenance.
The best Machine for Mass and Speedy Production over a long time.
Technical Specification
| Model | Dual Feed fully Automatic Eyelet/Grommet Punch Machine |
| Machine Type | Dual Feeding Automatic Eyeleting Machine |

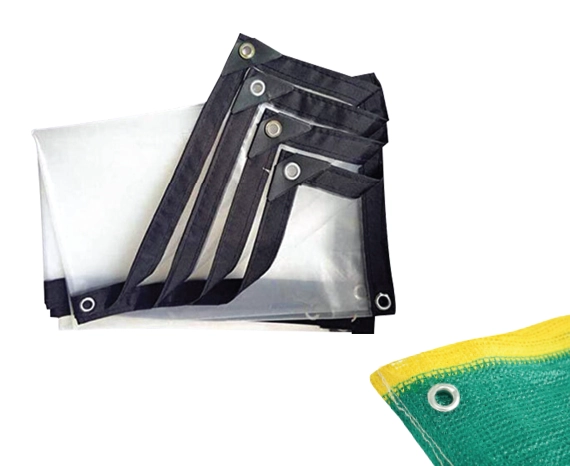

| Application | Tarpaulin ,Shade Net ,Banner |
| Eyelet Size | outside Diameter 23mm and Inside Diameter up to 16mm |
| Eyelet Material | Metal Eyelets |
| Eyelet Type | Self Piercing and Non Self Piercing Eyelets |
| Stroke | 50-60 pcs Eyelets per minute |
| Closing Accessories | Eyelet Punch Tools ,Hole Punch |
| Function | All in a Single Switch Press ,Feeding,Punching and Setting are done Power—220V-Single Phase,50/60 HZ or as per requirement |
| Safety Features | Die Guard and emergency Power Down Button Attached |
| Net Wt | 200kg — approx |
| Machine Size | 700mm x 700mm x 1450mm(LxWxH) |
| Gross Wt | 280kg — approx |
| Machine size after Packing | 900mm x 900mm x 1720mm (LXWXH) |
